Binder – CO₂ Incubators – Series CB-S Solid.Line – With hot air sterilization
Series CB-S incubators are suitable for routine cell cultivation applications: They are free from contamination due to 180 °C hot-air sterilization and reliable pH stability thanks to the drift-free infrared CO₂ measurement system.
Key Features
- Minimum risk of contamination thanks to +180 °C hot air sterilization
- Stable pH values thanks to drift-free CO₂ IR sensor technology
- High humidity up to 95% RH
- Simple and fast cleaning thanks to a seamless inner chamber
BINDER CB-S Series Incubators: CO₂ Incubators With Hot Air Sterilization
BINDER CO₂ incubators provide optimum growth conditions for a range of cell culture applications. The units guarantee an impressively low risk of contamination, and are quick and easy to clean. Plus, thanks to their low running costs, BINDER CO₂ incubators make for a sound investment.
BINDER CB-S series CO₂ incubators feature excellent growth conditions for cell cultures, having been designed for standard applications in the cell laboratory. The proven air jacket system and humidification system keep the incubator interior free from condensation, while the 180 °C hot air sterilization can be relied upon to ensure that bacteria and spores are killed, giving you maximum protection against contamination in the CO₂ incubator.
CO₂ Incubators With Hot Air Sterilization: Easy To Clean

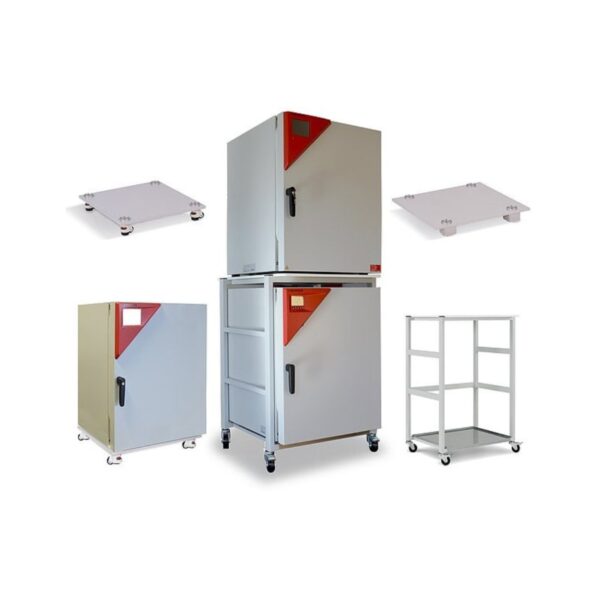

The incubator design features a seamless inner chamber and rounded corners, making it incredibly easy to clean. The two-part rack frame without screws adds to this, while also ensuring that the incubator is user-friendly. When CB-S series CO₂ incubators are stacked on top of one another, you get an optimum ratio between stand space and usable space, plus 300 liters of incubation capacity, allowing you to carry out your laboratory work comfortably and efficiently.
Incredibly straightforward and efficient to use, CB-S series CO₂ incubators from BINDER provide ideal, reproducible growth conditions for cell cultures. Thanks to the hot air sterilization, spores and bacteria can be killed as necessary, and cells and tissue can be cultivated safely.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| CB-S 170 | 680 x 870 x 715 mm | 560 x 600 x 505 mm | 90 kg | 170 L |
| CB-S 260 | 740 x 1020 x 785 mm | 620 x 750 x 575 mm | 125 kg | 267 L |
Available Models
- Temperature range: +6 °C above ambient temperature to +50 °C
- Humidity range: 90 to 95% RH
- Auto-sterilization with hot air at +180 °C
- Humidification system with condensation protection
- CO₂ gas mixing jet with Venturi effect
- CO₂ sensor with infrared technology
- LCD to display temperature and CO₂ along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Tightly sealed inner door made of tempered safety glass
- Seamless stainless steel inner chamber
- Perforated shelves, stainless steel
- Units are stackable with stacking adapter
- Troubleshooting system with visual and acoustic alarms
- Computer interface: Ethernet
- Zero-voltage alarm contact
- Can be stacked with CB model of the same size
- Temperature range: +6 °C above ambient temperature to +50 °C
- Humidity range: 90 to 95% RH
- Auto-sterilization with hot air at +180 °C
- Humidification system with condensation protection
- CO₂ gas mixing jet with Venturi effect
- CO₂ sensor with infrared technology
- LCD to display temperature and CO₂ along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Tightly sealed inner door made of tempered safety glass
- Seamless stainless steel inner chamber
- Perforated shelves, stainless steel
- Units are stackable with stacking adapter
- Troubleshooting system with visual and acoustic alarms
- Computer interface: Ethernet
- Zero-voltage alarm contact
- Can be stacked with CB model of the same size
