  • MEDICA® – Brochure – ELGA


Reliable and economical supply for analyzers which require higher volumes of water

Designed to supply CLRW grade water to a single analyzer. The MEDICA EDI 15/30 is the ideal system to provide predictable consumables usage, reducing the number of interventions.

The MEDICA EDI 15/30 is a compact, high-performance water purification system that directly feeds Clinical Diagnostic Analyzers with up to 1.5 l/min of CLRW standard grade water. The MEDICA EDI incorporates EDI ‘Pulse Technology’ using Electrodeionization (EDI). Innovative technology, combined with its unique features, makes the MEDICA EDI 15/30 a highly reliable and cost-effective choice.

Ideally suited for

  • Single or multiple clinical analyzers requiring up to 30 liters/hr
  • Single clinical analyzers requiring up to 1.5 liters/min instantaneous demand of CLRW grade water

Technical Specifications

Product specificationMEDICA EDI 15MEDICA EDI 30
Dispense flowrate15 l/hr30 l/hr
Inorganics (resistivity at 25°C)>10 MΩ.cm>10 MΩ.cm
Organics (TOC)<30 ppb<30 ppb
Bacteria<1 CFU/ml *<1 CFU/ml *
Particles0.2 μm filter0.2 μm filter
Silica<0.5 mg/l<0.5 mg/l
Delivery flow rateUp to 1.5 l/minUp to 1.5 l/min
*Subject to correct operating and maintenance procedures. Installation of MEDICA EDI unit requires the LA800 pre-treatment assembly and LC281 pre-treatment filters

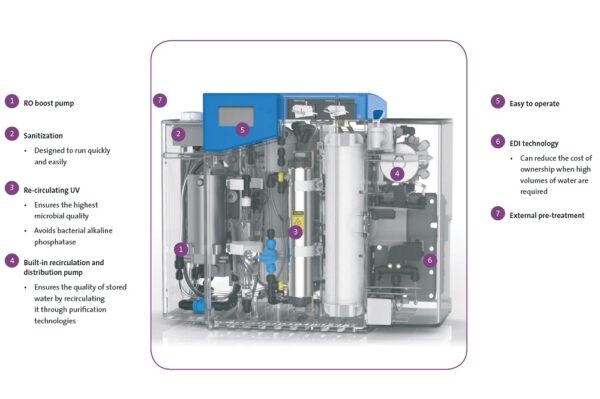

Key Features

MEDICA® – EDI 15/30

  • Space saving design – smallest footprint available on the market for the pure water specification. Optional Docking Vessel water reservoir facilitates bench top or wall mounting as a single unit
  • Guaranteed performance at all times through self-monitoring software, easy system maintenance, and emergency by-pass facility
  • Pure water ready to go – water specification is maintained in the reservoir by regular recirculation through the system’s purification process
