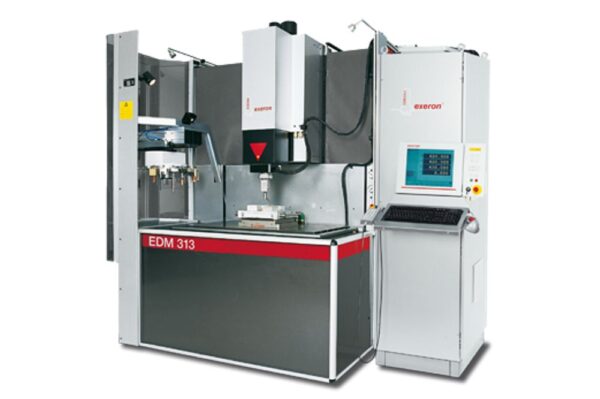

Exeron Vertical Eroding Machine EDM 313
EDM line: the highest level of efficiency
From micro erosion to large-scale spark erosion machining tasks: Exeron’s EDM line vertical eroding machines are up to any task. Our erosion technology is compact thanks to the high level of integration of all important systems and units as well as the highly rigid machine body made of cast iron and polymer concrete. The stable and robust design of all machine components ensures our systems are durable and reliable.
Available Models
Technical Specifications
| Model | EDM 310 MF 30 |
|---|---|
| Traverse paths X x Y x Z | 350 x 270 x 270 mm |
| Work table | 550 x 350 mm |
| Work tank | 770 x 520 mm |
| Distance table/quill min./max. | 130/400 mm |
| Electrode weight max. | 25 kg |
| Workpiece weight max. | 500 kg |
| Filling height work tank | 300 mm |
| Dimensions, total W x D x H | 1812 x 1650 x 2290 mm |
| Generator current | 60 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 8 kVA |
The small one
Small, integrated, highly dynamic: we developed the EDM 310 MF 30 especially for the micro erosion in areas such as electronics and medicine technology. All process-related systems and units are fully integrated. Hence, ensuring the required installation space is extremely small.
Technical Specifications
| Model | EDM 312 MF 30 |
|---|---|
| Traverse paths X x Y x Z | 450 x 300 x 300 mm |
| Work table | 820 x 400 mm |
| Work tank | 900 x 520 mm |
| Distance table/quill min./max. | 150/450 mm |
| Electrode weight max. | 30/150 kg |
| Workpiece weight max. | 800 kg |
| Filling height work tank | 300 mm |
| Dimensions, total W x D x H | 1950 x 1800 x 2500 mm |
| Generator current | 60 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 8 kVA |

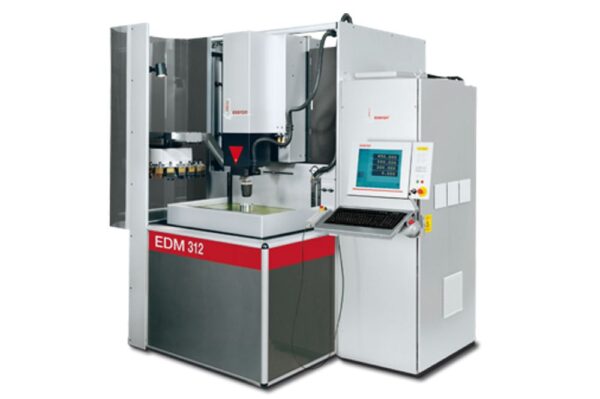

The compact one
Robust, compact, versatile: the EDM 312 MF 30 is well suited for a variety of applications. Delightfully compact dimensions while still being designed for heavier loads at the Z-axis.
Technical Specifications
| Model | EDM 313 MF 30 |
|---|---|
| Traverse paths X x Y x Z | 620 x 420 x 400 mm |
| Work table | 1000 x 600 mm |
| Work tank | 1070 x 670 mm |
| Distance table/quill min./max. | 150/550 mm |
| Electrode weight max. | 50/250 kg |
| Workpiece weight max. | 1500 kg |
| Filling height work tank | 400 mm |
| Dimensions, total W x D x H | 2316 x 2430 x 2560 mm |
| Generator current | 60 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 12 kVA |
The mid-range
Compact, fast, very solid: the EDM 313 MF 30 convinces with its unbeatable ratio of travel paths and installation space. The machine is also very solid while still offering high dynamics.
Technical Specifications
| Model | EDM 314 MF 30 |
|---|---|
| Traverse paths X x Y x Z | 900 x 700 x 450 mm |
| Work table | 50 x 850 mm |
| Work tank | 1200 x 900 mm |
| Distance table/quill min./max. | 250/700 mm |
| Electrode weight max. | 50/500 kg |
| Workpiece weight max. | 3000 kg |
| Filling height work tank | 500 mm |
| Dimensions, total W x D x H | 2200 x 3416 x 3100 mm |
| Generator current | 60 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 12 kVA |
The gantry machine
Powerful, flexible, ergonomic: the EDM 314 MF 30 scores with its outstanding accessibility from three sides and from the top. Large travel paths without stability losses are another feature. The drive of the machine is located in the centre of mass – this enables the highest rapid traverses.
Technical Specifications
| Model | EDM 314 MF 30 |
|---|---|
| Traverse paths X x Y x Z | 1500 x 1180 x 750 mm |
| Work table | 1750 x 1350 mm |
| Work tank | 1800 x 1400 mm |
| Distance table/quill min./max. | 250/1000 mm |
| Electrode weight max. | 50/500 kg |
| Workpiece weight max. | 8000 kg |
| Filling height work tank | 750 mm |
| Dimensions, total W x D x H | 2600 x 4700 x 3950 mm |
| Generator current | 100 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 18 kVA |
The large one with gantry
Large, strong, ergonomic: the EDM 316 MF 30 is the large gantry machine for large processing tasks. Despite its size, the machine provides optimal access and offers a tank which is driveable while filled.
Technical Specifications
| Model | EDM 316 XXL MF 30 |
|---|---|
| Traverse paths X x Y x Z | 2000 x 1180 x 800 mm |
| Work table | 2500 x 1350 mm |
| Work tank | 2550 x 1400 mm |
| Distance table/quill min./max. | 200/1000 mm |
| Electrode weight max. | 50/500 kg |
| Workpiece weight max. | 8000 kg |
| Filling height work tank | 750 mm |
| Dimensions, total W x D x H | 2600 x 6000 x 4000 mm |
| Generator current | 100 A |
| Mains supply | 400 V, Ds, 50 Hz |
| Power consumption | 19 kVA |
The giant with gantry
Giant, strong, ergonomic: if very large is still too small, the EDM 316 XXL MF 30 comes in useful. It completes even the largest processing tasks confidently and despite its size, it provides excellent accessibility.
Key Features
Exeron EDM line
- Highest stability due to FEM-optimised, undivided machine base made of mineral cast
- Smallest installation space due to integration of all process-related systems and units
- Digital AC servo direct drives and glass scales for highest drive and control dynamics
- Lowerable tank, driveable while filled for free access to the workpiece
- High-power generator technology exopuls+ with Digisparc-optimised erosion process
- Connection to various automation systems possible
Exeron Vertical Eroding Machine EDM 313
Key Industries
- Aerospace
- Automotive
- Die & Mould
- Machinery & Manufacturing
- Semiconductor, Solar & Electronics
Brand
Formed by the merger of Herbert Walter GmbH in Fluorn and Deckel-Multiform Erodiertechnik in Wolfratshausen, exeron GmbH draws on the invaluable know-how and expertise in mechanical engineering acquired over 40 years in all fields of spark erosion. exeron thus stands for absolute high-tech EDM solutions made in Germany. Today and in the future.
