Exeron – HSC line milling machine
HSC Line: Maximum Speed, High Acceleration and Rotation Speed
With our high-speed milling machines, impressive results can be achieved in both hard and graphite machining. The removal rates are so high that high-precision surfaces can be realised with the exeron milling technology.
Tool and workpiece changers for fast and smooth milling are already integrated into all of our HSC machine tools and can be expanded to up to 90 places depending on the machine size. The same applies to graphite machining with the strongest graphite extraction on the market. Our HSC milling machines are also primed for further integration into project systems for automated milling and erosion.
Available Models
Technical Specifications
| Model | HSC 300/3 |
|---|---|
| Traverse paths X x Y x Z | 480 x 340 x 355 mm |
| Workpiece clamping table | 470 x 400 mm |
| Distance table/spindle nose | 495 mm |
| Workpiece weight max. | 500 kg |
| Dimensions, total W x D x H | 2000 x 2350 x 2450 mm |
| Spindle speed | 42 000 min–1 |
| Spindle performance S1/S6 – 40 % | 10/13 kW |
| Tool magazine | 16/40 HSK 40-E |
| Rapid traverses X x Y x Z | 30 m/min |
| Accelerations X x Y x Z | 6 m/s² |
| CNC control | Heidenhain iTNC 530 |
Technical Specifications

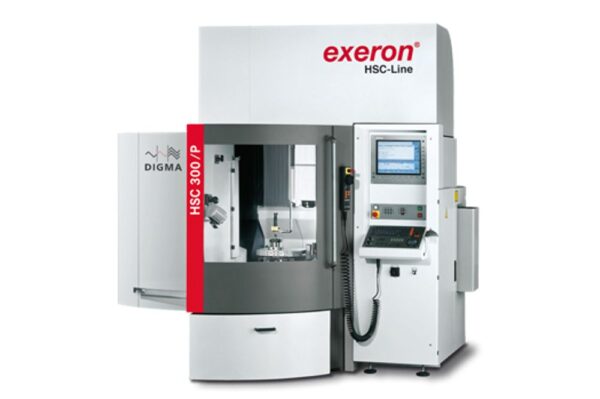

| Model | HSC 300/P |
|---|---|
| Traverse paths X x Y x Z | 425 x 340 x 355 mm |
| Workpiece clamping table | 470 x 400 mm |
| Distance table/spindle nose | 495 mm |
| Workpiece weight max. | 500 kg |
| Dimensions, total W x D x H | 2250 x 2350 x 2450 mm |
| Spindle speed | 42 000 min–1 |
| Spindle performance S1/S6 – 40 % | 10/13 kW |
| Tool magazine | 16/40 HSK 40-E |
| Rapid traverses X x Y x Z | 30 m/min |
| Accelerations X x Y x Z | 6 m/s² |
| CNC control | Heidenhain iTNC 530 |
Technical Specifications
| Model | HSC 600/3 | HSC 600/5 |
|---|---|---|
| Traverse paths X x Y x Z | 650 x 550 x 400 mm | 650 x 550 x 400 mm |
| Workpiece clamping table | 530 x 900 mm | Ø 410 |
| Distance table/spindle nose | 600 mm | 600 mm |
| Workpiece weight max. | 600 kg | 200 kg |
| Dimensions, total W x D x H | 2200 x 2400 x 2900 mm | 2200 x 2400 x 2900 mm |
| Spindle speed | 42 000 min–1 | 42 000 min–1 |
| Spindle performance S1/S6 – 40 % | 10/13 kW | 10/13 kW |
| Tool magazine | 30/60/90 HSK 40-E | 30/60/90 HSK 40-E |
| Rapid traverses X x Y x Z | 50 m/min | 50 m/min |
| Accelerations X x Y x Z | 15 m/s² | 15 m/s² |
| CNC control | Heidenhain iTNC 530 | Heidenhain iTNC 530 |

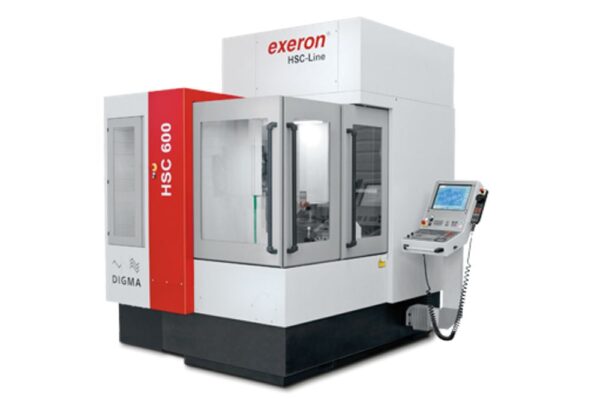

HSC 600: Maximum Speed, High Acceleration and Rotation Speed
Key Industries
- Aerospace
- Automotive
- Die & Mould
- Machinery & Manufacturing
- Semiconductor, Solar & Electronics
Brand
Formed by the merger of Herbert Walter GmbH in Fluorn and Deckel-Multiform Erodiertechnik in Wolfratshausen, exeron GmbH draws on the invaluable know-how and expertise in mechanical engineering acquired over 40 years in all fields of spark erosion. exeron thus stands for absolute high-tech EDM solutions made in Germany. Today and in the future.
