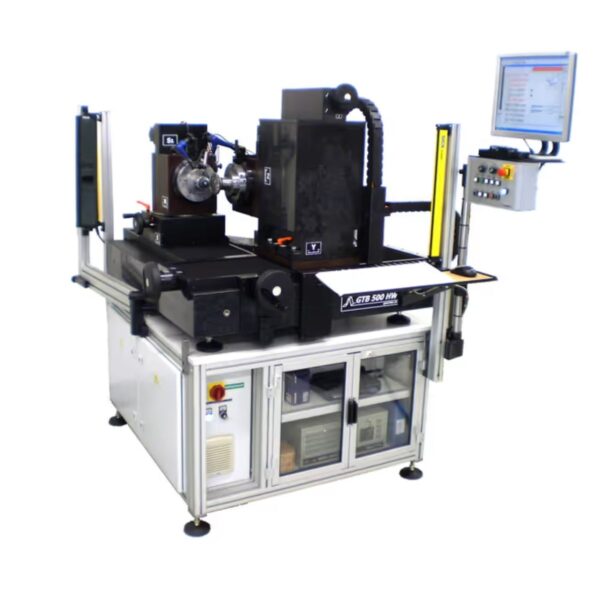

GTB 500 is top selling of our single flank isnpection machines for bevel gears up to 500mm in diameter. Not only bevel gear pairs can this machine measure, but also spur/helical gears with our special contructed rotary axis. Please check out more by reading the machine presentation.
Technical Specifications
| Diameter, max. | 500 mm |
|---|---|
| Diameter of bore for gear | 90 mm |
| Diameter of bore for pinion | 90 mm |
| Mounting distance of gear, max. | 350 mm |
| Mounting distance of pinion, max. | 450 mm |
| Hypoid offset | ± 50 mm |
| Angle between axis | 0 – 180 rad. |
| Revolutions, max. | 100 Rev./min. |
| Revolutions during measuring, max. | 30 Rev./min. |
| Brake torque, max. | 15 (60) Nm |
| Weight of gear, max. | 30 kg |
| Total weight | 1400 kg |
| Dimesion | 1200x1200x1500 mm |
| Accuracy | DIN 3965 / class 1 |
Key Features
GTB500
- DIN Quality
- Defined backlash
- Low level of noise / high lifespan
- Influence of assembly precission
- Contact pattern, V-H characteristics
- Where error comes from (pinion/wheel)
