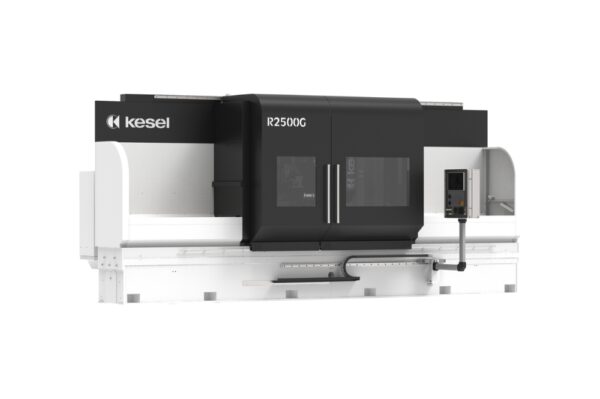

Georg Kesel – Gear Rack and Profile Milling Machine – R-Series G Line
Productivity and precision is power. Reach your production and quality goals in record time with the latest grinding machine from the Kesel R Series G Line. Gear rack and profile grinding at high volume has never been this effective.

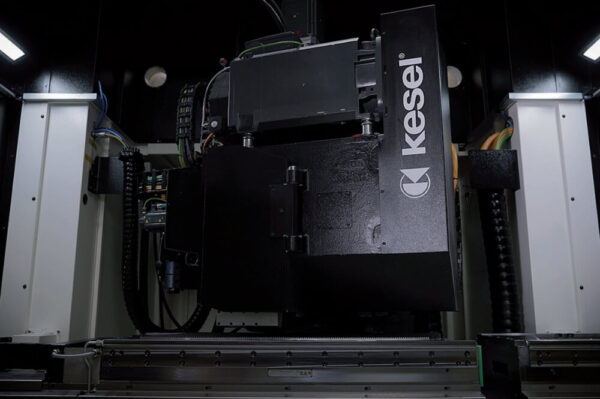

With a brand new design and extensively optimised high-performance technology, the R Series G Line grinding machines from Kesel set a new standard in high quality, high productivity gear rack and profile grinding. From the newly developed grinding head to the re-engineered coolant and swarf management system, the R Series G Line machines deliver both industry-leading dimensional precision and unbeatable surface quality.
If you are looking to reduce secondary processing time, increase productivity and dramatically accelerate the machine’s ROI the R Series G Line from Kesel is the perfect machine. The world-first X2T twin-table setup, the integrated SW3K swarf vacuum and a new operating system allow productivity volumes never seen before.
Technical Specification
| Travel Ranges | X-axis (horizontal / table) | Up to 2.940 mm |
| Y-axis (vertical / depth) | 250 mm | |
| Z-axis (traverse / infeed) | 620 mm | |
| B-axis (rotation / helix) | +/- 25 ° | |
| Grinding Head | Power | 71 kW S1 |
| RPM | Max. 4.500 | |
| Grinding wheel width (max.) | 127 mm | |
| Grinding wheel diameter (max.) | 400 mm | |
| Grinding wheel diameter (min.) | 243 mm | |
| Control | Siemens SINUMERIK 840D sl | |
| Clamping | Clamping System | Magnetic, hydraulic or hybrid options available |
| Dimensions and Weight | Installation dimensions (L x W x H) | 9,400 x 7,850 x 3,200 mm |
| Machine weight | approx. 26,500 kg | |
| Options | Automatic sliding doors Controlled B-axis Grinding wheel changing unit Customised clamping setups |
Key Features
- Unbeatable precision up to DIN Q5.
- Available with fully automated loading / unloading.
- Extremely rigid and thermally stable machine for high-production processes.
The Kesel R-Series Gear Rack and Profile Grinding Machine
The R Series grinding machines from Kesel. The next generation of rack and profile grinding. With a brand new design and extensively optimised high-performance technology, the R Series grinding machines from Kesel set a new standard in high quality, high productivity gear rack and profile grinding. From the newly developed grinding head to the re-engineered coolant and swarf management system, the R Series machines deliver both industry-leading dimensional precision and unbeatable surface quality. In addition, if you are looking to reduce secondary processing time, increase productivity and dramatically accelerate the machine’s ROI the R Series from Kesel is the perfect machine. The world-first X2T table setup, the integrated SW3K swarf vacuum and a new operating system allow productivity volumes never seen before.
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Georg Kesel GmbH & Co. KG is an internationally recognized manufacturer of machine tools for linear tooth profile milling. These milling machines offer optimized production techniques for bandsaw blades, racks, steering racks, steering pistons and workpiece with customer specific tooth profiles. Our product range also covers setting machines, bandsaw blade straightening machines, coiling systems and gear deburring machines. Our second business division is clamping systems. The Kesel clamping technology covers mechanical, pneumatic and hydraulic machine vices and clamping systems including customer specific modifications.
