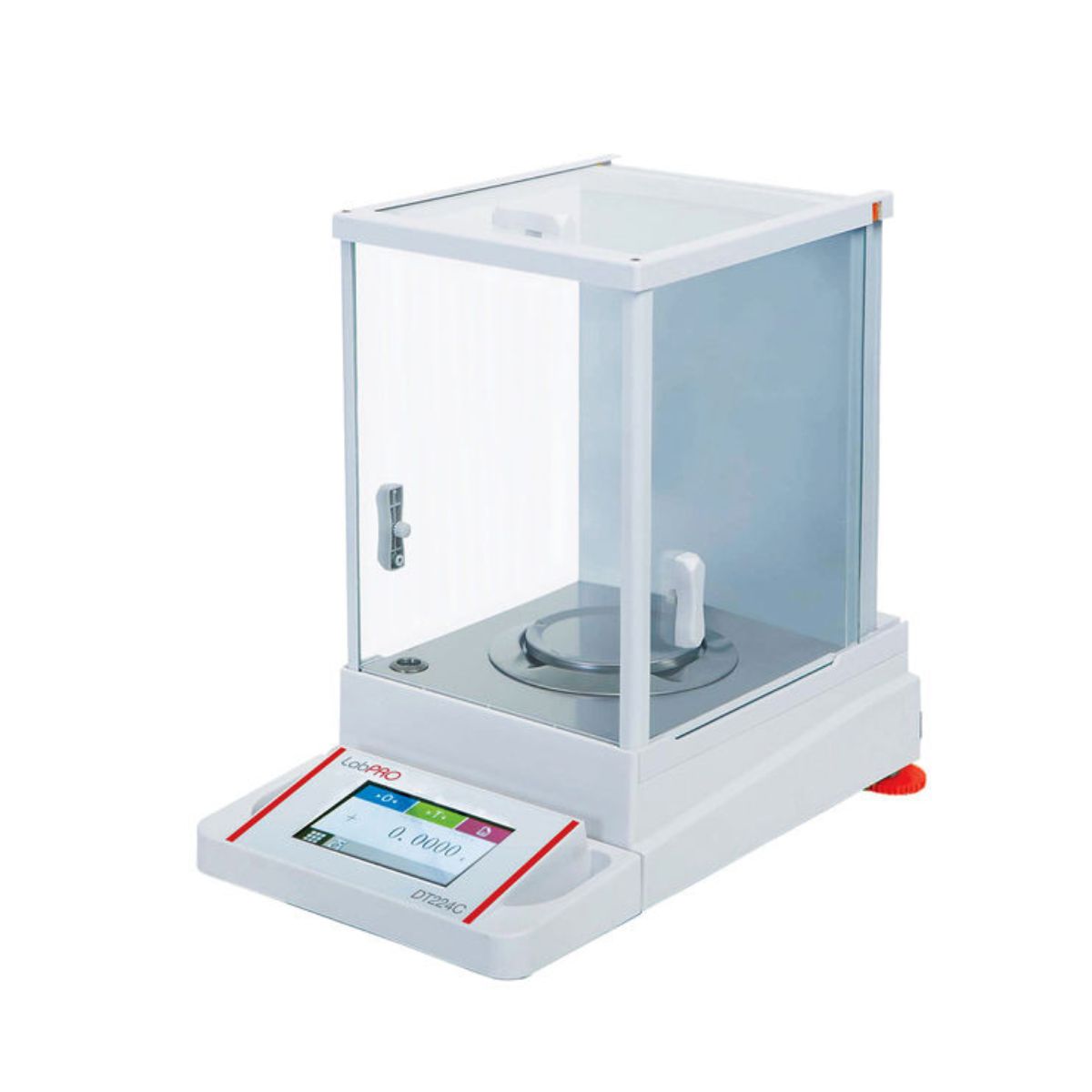

The DT Series of analytical and high precision balances from LabPRO delivers the accuracy and performance required in a host of laboratory, industrial and educational applications. With the right blend of performance and features, LabPRO DT Series high precision balances offers high performance yet economical value for all your weighing needs.

Technical Specifications

Weighing capacity (max) (g)220
Readability (g)0.0001
Repeatability (S.D.) (g)±0.0001
Linearity (g)±0.0002
Calibration typeExternal, internal
Units of measurementGram (g), Carat (ct), Ounce (Oz), Troy ounce (Ozt), Newton (N), Pound (lb), Custom unit (via conversion factor)
InterfaceInterface Bi-directional RS-232 (standard)
Operating temperature (°C)0 to 40
DisplayTFT LCD touch screen with Metro color scheme
Power supply12 VDC, 50/60 Hz, 600 mA (Input: 100-240 VAC, 50/60Hz)
HousingDie cast aluminum equipped with glass draft shield
Dimensions (D/W/H) (mm)365 × 223 × 338
Pan size (mm)Ø90
Draft shield dimensions (D/W/H) (mm)165 × 160 × 200
Net weight (kg)5.5

Key Features

a large, white backlit LCD panel provides a display rich in essential weigh information in large segmented fonts for easy reading

standard applications allow for all kinds of weighing tasks such as basic weighing, counting, percentage weighing and custom weighing (factor conversion). The balance also features a built-in under hook for below-balance weighing

high accuracy is achieved by employing the patented, ceramic-variable capacitance sensor technology. Dynamic temperature compensation accounts for changes in the environment for accurate weighing

  • Agriculture
  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Paper & Wood
  • Pharmaceutical
  • Polymers, Plastics and Rubbers
  • Powders & Pigments / Coating

Brand

LabPRO

LabPRO products are specially designed to offer high performance with Swiss accuracy yet with economical value. Our product range includes pipettes, dispensers and balances.
