Messmer Büchel – Burst Tester
The Burst Tester is used as a multi-directional test to identify failure in the direction showing least resistance. This test shows the physical strength and fiber bond. Different models are available for paper, board or textile. This instrument is also used for other applications such as plastic, rubber, aluminum and felts. The sample is pneumatically clamped, the rubber membrane is pushed upwards by hydraulics. The force at fracture is recorded.
Technical Specifications
| 13-60 EC35 | 13-61 EC36 | 13-62 EC37 | |
|---|---|---|---|
| Packaging type | Paper and Foils 2,000kPa 731 mm2 | Paper Board and Corrugated 5,000kPa 770 mm2 | Textiles 7,000 kPa/ 1000 mm2 |
| Accuracy | +/- 1% of reading | +/- 1% of reading | +/- 1% of reading |
| Sample height | max. 20mm Safety hood standard delivered | max. 20mm Safety hood standard delivered | max. 20mm Safety hood standard delivered |
| Electrical | 110 V/60 Hz or 220V/50 Hz | 110 V/60 Hz or 220V/50 Hz | 110 V/60 Hz or 220V/50 Hz |
| Air | 6 kPa | 6 kPa | 6 kPa |
Key Features
Burst Tester
- Compensation of membrane force
- Starting test with one button
- Changing settings all in one screen
- Hydraulic testing increases accuracy
- Shield to enable safe operation
- Accuracy 1% of value

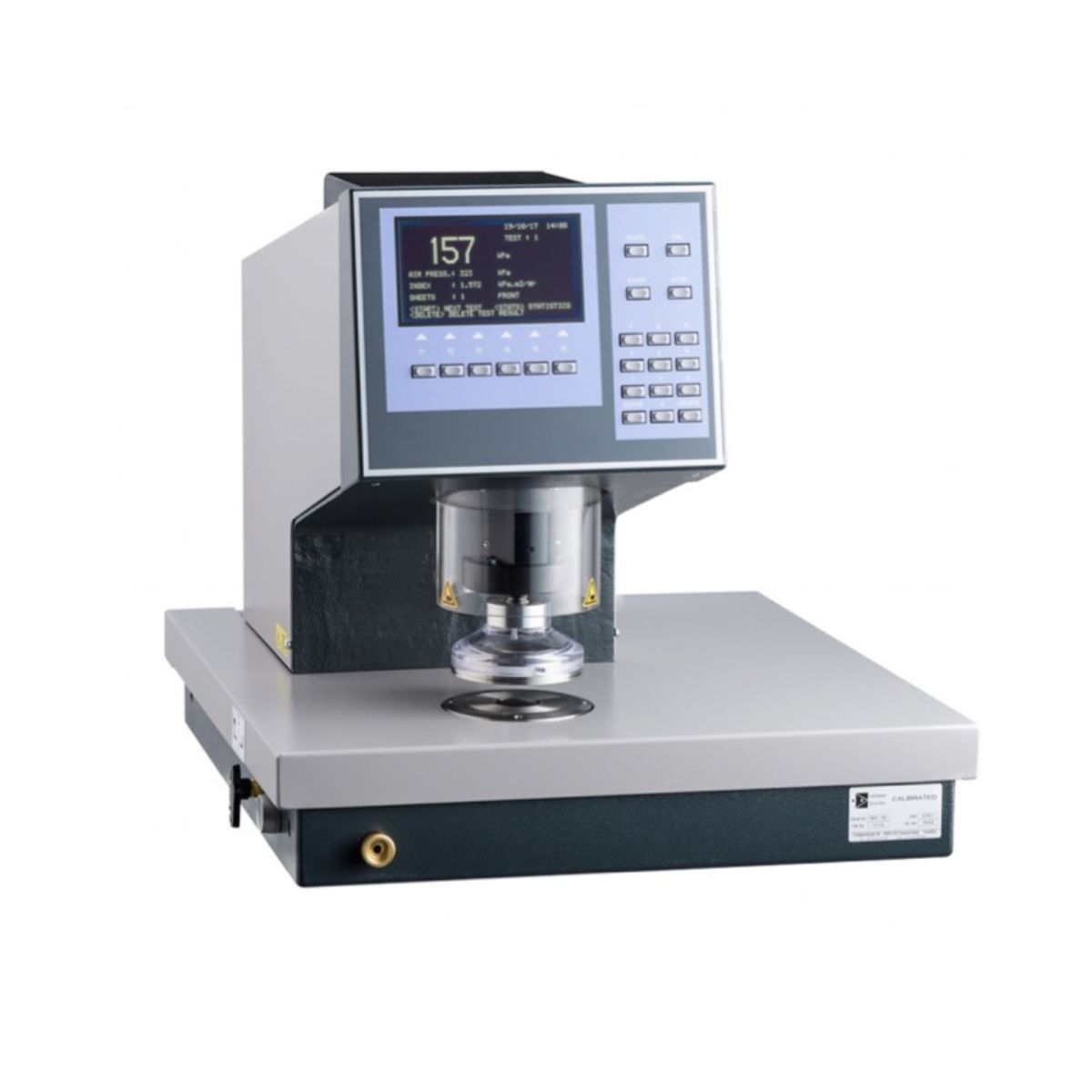

13-6x Burst Tester
Key Industries
- Education & Academics
- Food & Beverage
- Mining & Minerals
- Oil & Gas
- Polymers, Plastics and Rubbers
