Messmer Büchel – Pocket Goniometer PGX+ – Model 68-76
Small and Easy to Handle
The PGX+ measures contact angle (dynamic and static), surface tension, and surface energy. The PGX+ makes a drop in µl according to the size that is set. The drop is automatically released and 80 images per second are made. The instrument is used for paper & board, solar cell panels, windshields, metal cylinders and similar surfaces. For most tests deionized water is used, however using other liquids is also possible. Contact us if you want to use any other liquids.
Test Results

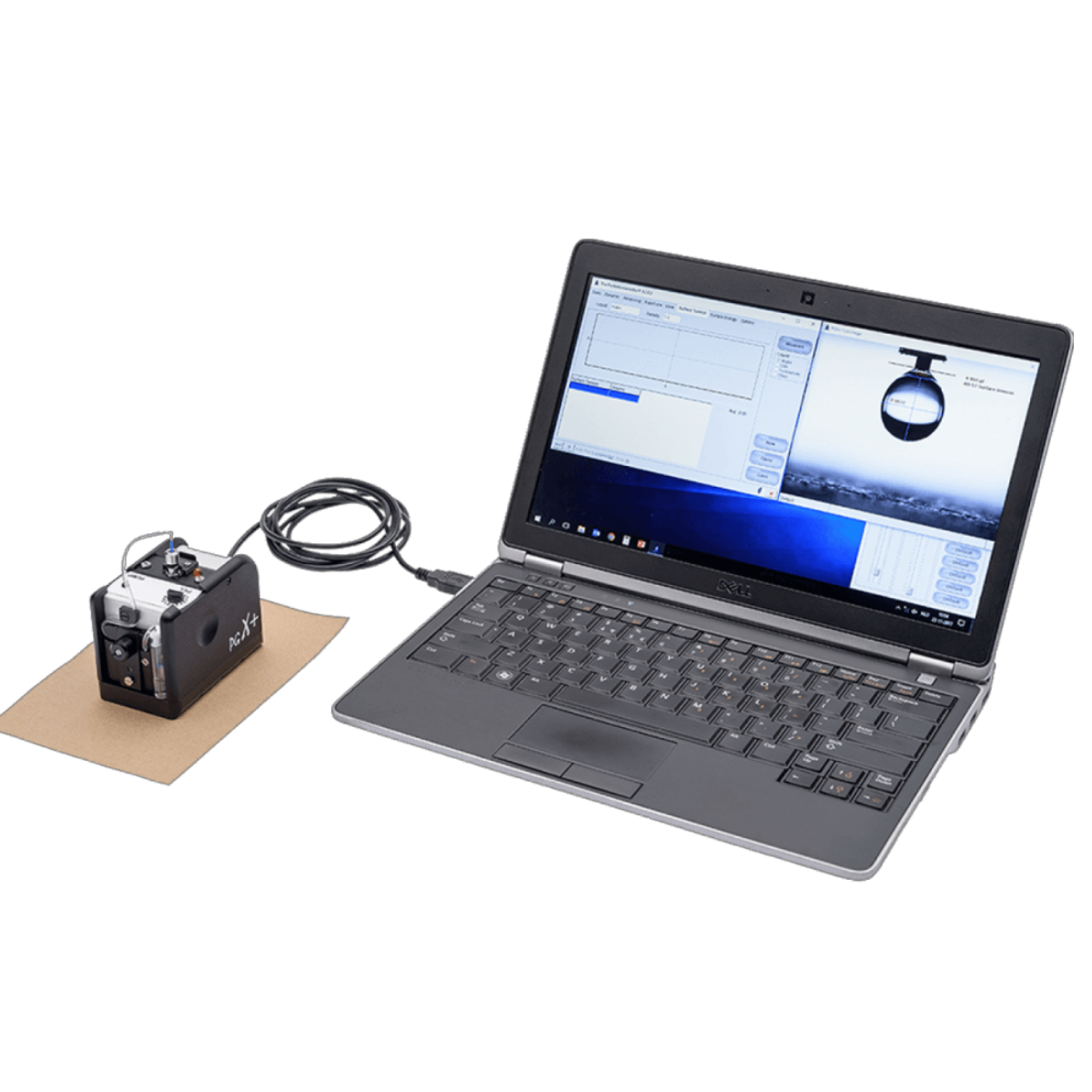

During testing the instrument is connected to the special PC software. The software gives you an easy overview of the possible tests. During the test the data transferred to the computer. The pictures taken and the results can be stored and analyzed. Thanks to the direct feedback, adjustments to improve the results can easily be made.
Technical Specifications
| Model | 68-76-00-0001 |
|---|---|
| Liquid size | 0.5 – 10 microliter |
| Results | Images and statistics |
| PGX+ software | Included |
| Changing fluids | Possible |
| Dimensions (LxWxH) | 90 x 55 x 90 mm |
| Weight | 500 gram |
Key Features
Model 68-76
- Easy to handle, small sized
- Registration with 80 frames / second
- Purity of liquids, Surface Tension, Static and Dynamic Contact Angle
- Multiple test fluids possible
- Runs on every Windows computer
- Power from USB connection
- No sample preparation
International standards
- TAPPI T458
- ASTM D-724
- ASTM D-5946
