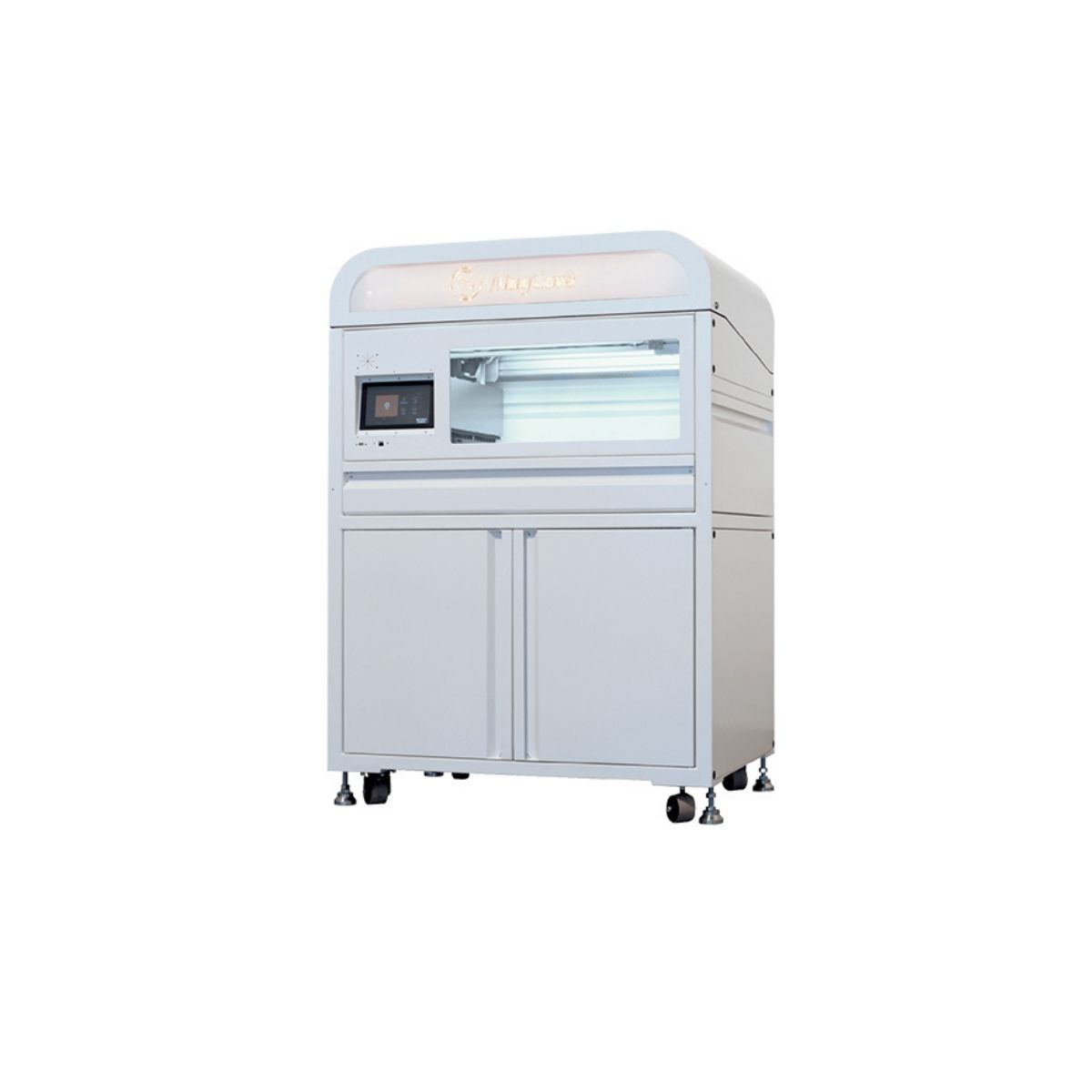

RBC Bioscience – Automated Nucleic Acid Extractor – MagCore® HF48
MagCore® HF48 is a powerful system with consistent and simultaneous processing of 1st~24th or 24th~48th samples of DNA/RNA at A/B operation zones. It provides fast, cost-effective, and automated extraction purification of nucleic acids from diverse sample types including whole blood, bacteria cells, plant cells, cultured cells, virus particles and tissues. With a sterilization system built-in, optimized protocols pre-programmed and magnetic bead-based reagent cartridges supplied, MagCore® HF48 provides users a fast, efficient and cross-contamination-free isolation of various DNA/RNA samples. Its superb processing capacity makes itself a perfect solution for high-capacity nucleic acid purification.
Technical Specifications
General
| Power supply | Voltage : AC 200V~220V; Frequency : 50/60Hz |
|---|---|
| Dimension | W1000 x D800 x H1600 (mm) ; W39.37 x D31.49 x H62.99 (inches) |
| Net weight | 250kg / 551.25lbs |
Operating parameters
| Processing capacity | 1~48 samples per batch |
| Sample volume | 200μl /400μl /1,200μl |
|---|---|
| Elution volume | 60/100/150/200 μl |
Key Features
MagCore® HF48
- Special designs of the cartridge rack, T-rack, and tube rack for an easy installation.
- Auto-cartridge locking
- 8-inch full-color touch screen
- Worldwide Patented Magnetic Beads: With RBC patented magnetic bead technology, cellulose coating particles give high binding capacity and the best purity of nucleic acid.
- Ideal for DNA/RNA Extraction: Built-in protocols are created for various sample types including whole blood, viral nucleic acid, tissue, plant, cultured cells, etc.
- UV Decontamination: The equipped UV lamp prevents the risk of cross-contamination, improving user safety and product quality.
- High Capacity of 48 Samples: Two modules of 24 sample rack provide flexibility and convenience during processing.
- Touch Screen with User Friendly Interface: An integrated 8-inch full-color touch screen with intuitive interface simplifies protocol selection. Only one touch is required to run your daily works.
- True Walk Away System: Each of programs is controlled by a specific 3-digit protocol code. Simply key-in the code number and let the machine do the rest for you. The MagCore® automated system makes it realized that the nucleic acid purification is without user intervention since from the input of starting materials to the final output of ready-to-use DNA/RNA.
