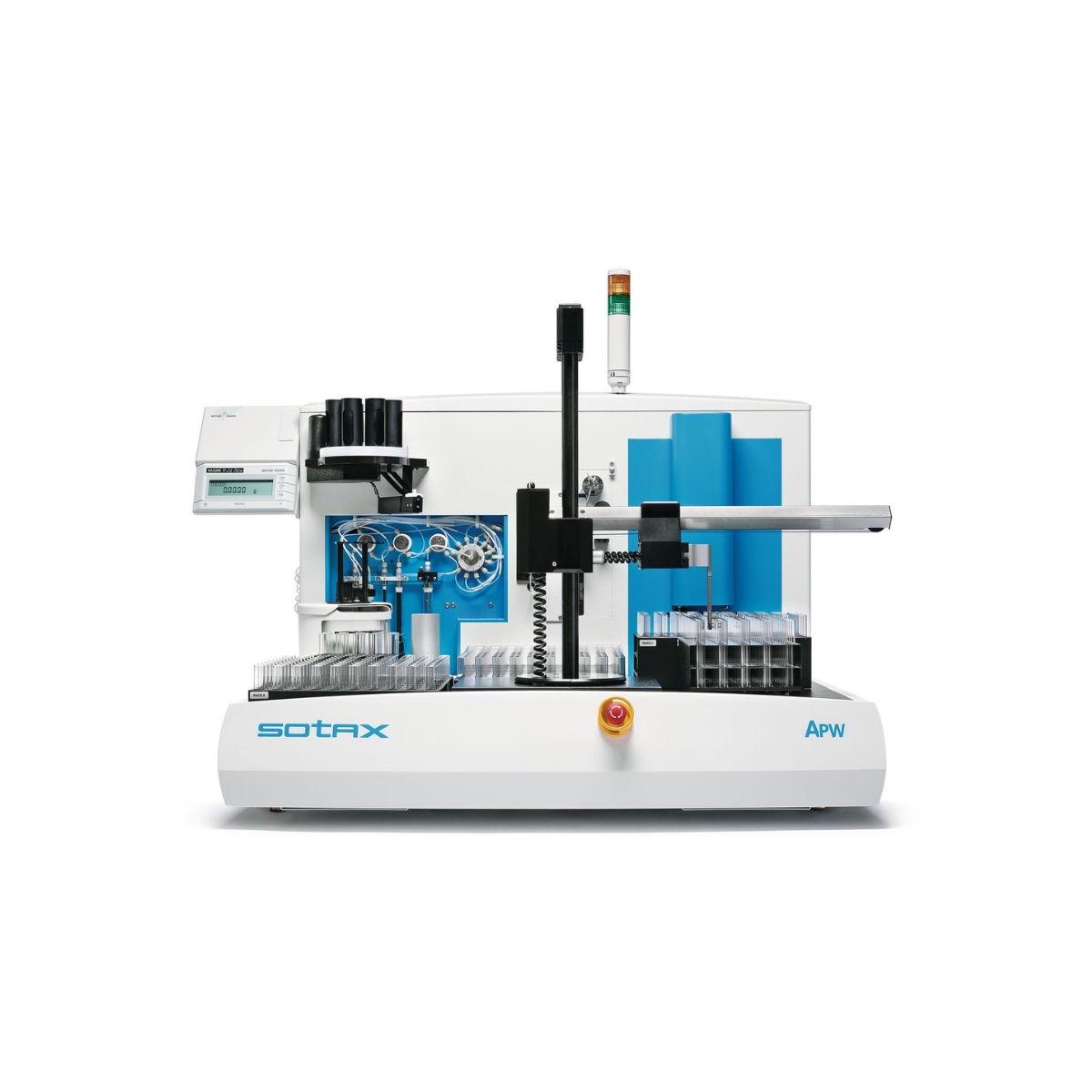

APW 자동 시료 준비 워크스테이션은 시료의 중량 측정, 추출, 여과, 희석 및 분석 장치로의 이동 등 반복적인 작업에 대한 자원 할당을 최소화하여 실험실의 생산성을 향상시킵니다. 이를 통해 실험실 직원들은 데이터 분석, 보고서 작성, 노트북 문서화와 같은 중요한 업무에 재배치될 수 있습니다. 또한 자동화된 절차는 용매 사용과 유해 폐기물 생성을 줄이는 동시에, 유해한 시약 및 샘플에 대한 노출을 최소화하여 분석자의 안전을 향상시킵니다.
주요 특징
- 최대 300개의 시료에 대한 분석 및 함량/혼합 균일성.

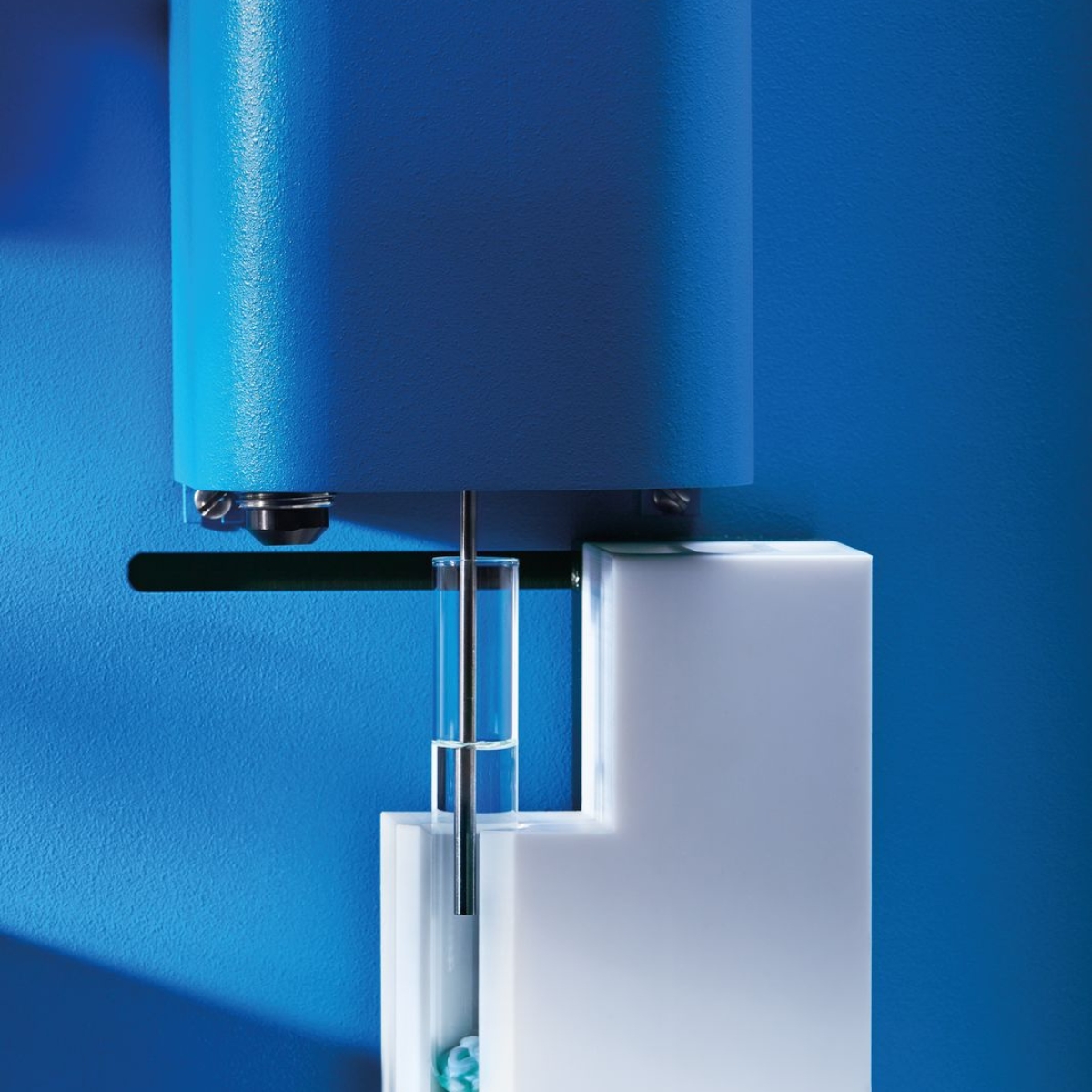

- 10 mL 초기 추출 용량을 사용하는 집중 초음파 프로브
- Waters Empower™ 인터페이스
- 효율적인 DoE 연구를 위한 강력한 dEsign™ 변수
- VideoLink™를 통한 영상 모니터링.
기술 사양
APW | ||
Max. Sample Throughput per Run | 300 samples (extraction mode 1 & 2) | |
Sample Containers | APW 16 × 100 mm tubes | |
Sample Confirmation | 5-place and 4-place weighing (min. weight of 100 mg or 200 mg, respectively) | |
Sample Tracking | Linear barcode reader | |

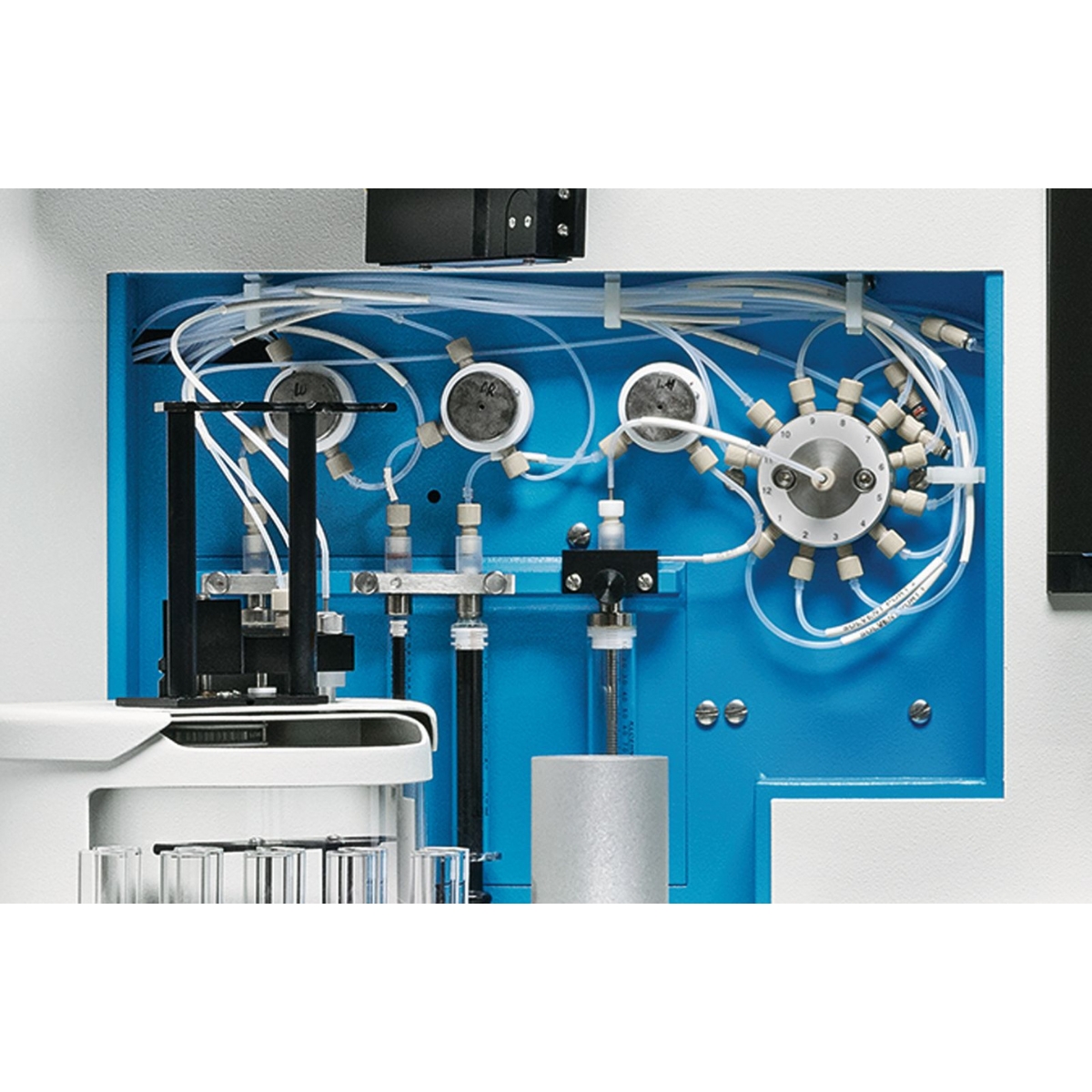

Extraction & Liquid Handling | Extraction Mode 1 | Sonicator (with UV temperature sensor) |
Extraction Mode 2 | Vortexer | |
Extraction Volume | 1 mL – 10 mL (16 x 100 mm test tube) | |
Filtration | Syringe | |
Syringe-driven Liquid Dispensing | 0.05 mL – 10 mL | |
Max. Dilution Ratio | 1:10,000 | |
Max. Number of Solvents Connected | 9 solvents | |
Analytical Finish | Offline | • Sample collection in test tube racks on APW platform • Sample collection into sealed vials in SAM |
HPLC Online | HPLC fixed loop injector incl. Waters EmpowerTM interface | |
UV-Vis Online | Sample collection followed by automated transfer into UV-Vis | |
Controls (Minimum Requirements) | PC | Windows 7-64 bit, Dual Core Processor |
Database | MS SLQ Server 2000 or greater Express, Workgroup, or Standard Edition | |
Power Supply | 120 V or 240 V (±10 %) / 50 – 60 Hz / 800 VA | |
Weight (Without Packaging) | 125 kg / 275 lbs | |
Dimensions | Width | 116 cm / 45.5 inch (with balance LCD panel) |
Height | 107 cm / 42 inch (incl. light tower) | |
Depth | 91 cm / 36 inch |
