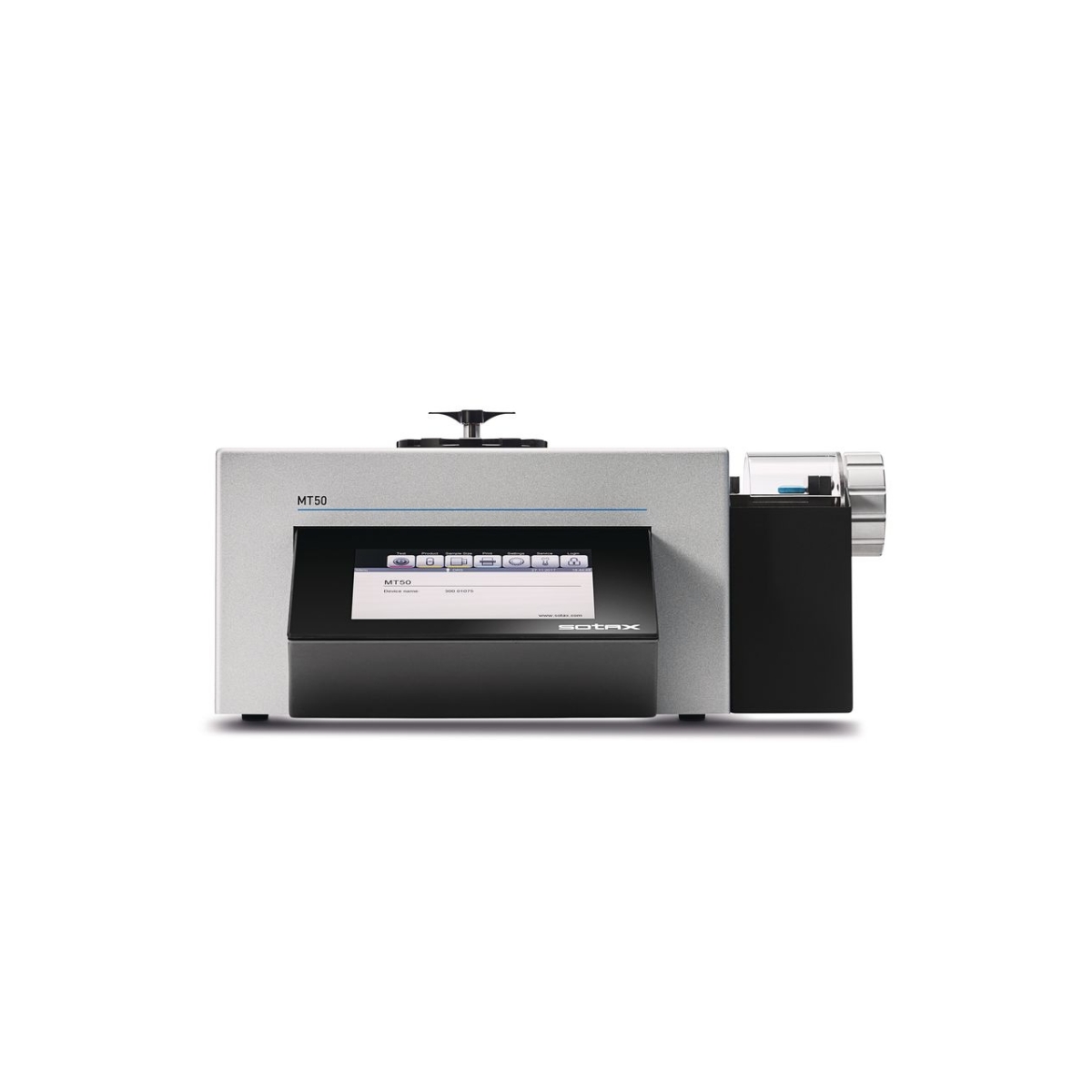

MT50은 초정밀 Dr. Schleuniger® 기술을 탑재한 가장 진보적이고 정확하며 사용자 친화적인 수동 정제 경도 측정기로, 실험실과 타정실 모두에게 인기 있는 장비입니다. 사용방법이 매우 쉽고 견고한 MT50은 다양한 항목 측정부터 모든 종류의 형태 및 소재를 가진 정제 시료의 경도 테스트까지 아우르는 빠르고 정밀한 수동 측정 방식에 새로운 기준을 제시합니다.
주요 특징
- 무게, 두께, 너비/지름, 길이 및 경도의 5가지 항목 측정.
- 테스트 결과를 USB 드라이브로 내보내는 것을 포함한 사용자 설정 가능한 테스트 보고서 및 다양한 프린터 인터페이스.
- 최고 수준의 정밀도와 짧은 사이클 타임을 위한 최적화된 조작 방식.
- USP <1217> 및 Ph.Eur. 2.9.8 요구사항에 따른 설계 기반 준수.
- 견고한 Dr. Schleuniger® 측정 기술.
- 직관적인 아이콘 기반 EasyTouch™ 조작.
- q-doc® 소프트웨어를 통한 데이터 무결성 및 21 CFR, Part 11 준수 데이터 관리.
- 경도 조정 및 검증을 위한 초정밀 검증 툴.
기술 사양
MT50 | ||
Weight (Mass) | External balance | Mettler Toledo®/ Sartorius® |
Units of measure | mg / g | |
Resolution | 1.0 mg / 0.1 mg / 0.01 mg | |
Thickness | Units of measure | mm / inch |
Resolution | 0.01 mm | |
Measuring range | 2 – 25 mm | |
Repeatability | ± 0.03 mm | |
Width/Length (Diameter) | Units of measure | mm / inch |
Resolution | 0.01 mm | |
Measuring range | 2 – 35 mm / optional: up to 65 mm | |
Repeatability | ± 0.03 mm | |
Hardness | Units of measure | N / Kp / Sc / UDF |
Measuring range | 2 – 800 N | |
Repeatability | ± 1 N | |
Dr. Schleuniger® S-beam load cell | 99.98 % linearity, over entire measuring range | |
Calibration (Adjustment / Verification) | Static: with reference weights; dynamic: with DQD™ | |
Measuring Principle | Constant speed | 0.05 – 5 mm/s, programmable |
Linear force increase | 10 – 200 N/s, programmable | |
Printer | PostScript® 3 (PS3) | Ethernet, USB |
Epson® 40col. | RS-232 serial | |
Interfaces | Ethernet, 2 × USB, 3 × RS-232 serial | |
Power Supply | 100 – 240 V / 50 – 60 Hz | |
CE Conformity | The MT50 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
Model | Standard | Easy | |
Configuration | Weight (Mass), with external balance | ○ | – |
Thickness, with integrated FastTest™ | ○ | ○ | |
Width | ○ | – | |
Length (Diameter) | ○ | ○ | |
Hardness | ● | ● | |
EasyTouch™ | Program capacity | 100 products | – |
User administration | ● | ● | |
Xport™ option (export on USB flash drive) | ○ | – | |
Data Management | q-doc® software, with SmartWay™ networking | ○ | – |
Weight | (without packaging) | 10 kg (22 lbs) | |
Dimensions | Width | 404 mm (15.9 inch); with 65 mm option: 434 mm (17.1 inch) | |
Depth | 288 mm (11.4 inch) | ||
Height | 177 mm (7.0 inch); with FastTest™: 207 mm (8.2 inch) |
