Edale – Carton Press

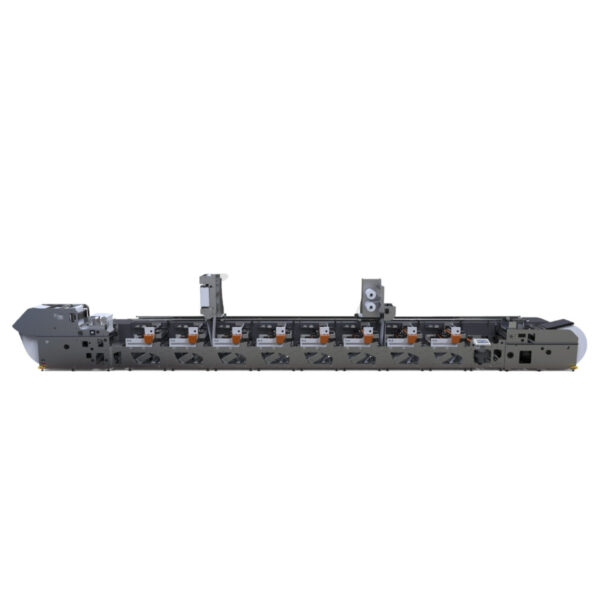

The FL5 + RDC is a high productivity printing and converting machine for cartons, scratch cards and labels where there are infrequent job changes.
The fully servo driven system allows for easy and repeatable setups in both the printing and converting sections. The rotary die-cutting technology (RDC enables high speed production of both sheets and die-cut product whilst maintaining the versatility of a one pass production). It comes in 600mm web width as standard.
This flexibility means that the FL5 + RDC can be configured for a wide range of applications such as: single pass cartons, single pass scratch cards, paper cups, sleeves and much more. Single pass production significantly reduces work in progress, number of operators, space requirement, waste and delivery times whilst also increasing overall efficiency of traditional multi pass production methods.
Technical Specifications
| Product | FL5 | FL7 | |
|---|---|---|---|
| Web widths (inch) (mm) | 510mm | 20” 570mm | 22.4” 650mm | 25.5” | 650mm | 25.5” 760mm | 29.9” 850mm | 33.4” | |
| Repeat range (inch) | 8 – 24” 203.2 – 609.6mm | 14 – 36” 355 – 914mm | |
| Material range (micron) | 12 – 700 microns 0.5 – 27pt | <700 microns <27pt | |
| Mechanical speed (m/min) | 200 m/min | 660 ft/min | 300 m/min | 990 ft/min | |
| * 600mm is standard web width. | |||
Available Models
The FDC-600 handles various printing processes, while the FL5 complements it for short-run carton production, efficiently covering cut, crease, emboss, braille, and more in a single pass.
The FL5 carton production line running in line with the Edale FDC-600, web-fed flatbed die cutter, make a highly efficient solution specifically designed for short-run folding carton production.
Key Features
- Reduced set up and running waste
- Just one operator needed
- Short runs and multiple variations with ease
The FL5 + RDC is a highly productive machine designed for cartons, scratch cards, and labels with infrequent job changes. Its fully servo-driven system ensures easy and repeatable setups in both printing and converting sections, while rotary die-cutting technology (RDC) allows high-speed production of sheets and die-cut products. Edale offers customization options, including laminating, cold foiling, hot foiling, screen printing, and more.
This flexibility makes the FL5 + RDC suitable for various applications, significantly reducing work in progress, operator requirements, space, waste, and delivery times compared to traditional multi-pass methods.
Key Features
- Increased productivity
- Single pass production
- Modular design- allows for future
- Full servo driven technology and full motorised adjustment allows quick and repeatable set up
- Autonomous closed loop register maintains accurate registration in both x and y directions reducing the need for operator intervention
- Advanced HMI gives unlimited job storage function allowing for detailed job data to be used for fast and accurate job set-up
- The rail system allows for additional options such as laminating, reverse print, foiling and screen to be easily moved between print units.
For unmatched versatility, consider the FL5 flexographic printing solution by Edale. This system handles a wide range of substrates, offers various finishing options, and can quickly switch between print jobs.
With an extensive range of carton board options, it serves multiple industries and can be customized to suit specific needs. Edale’s AiiR system ensures quick job changeovers and consistent, high-quality results. The FL5 combines automation, superior print quality, and customization for your unique requirements
Key Features
- Quick set-up: Full automation of print parameters allows for a quick and easy set-up
- Advanced job recall: Motorised adjustment allows all settings to be stored which results in easy job recall and enhanced product repeatability
- Flexibility: Advanced tension control allows many substrates to be run without any mechanical changes
The FL7 is a versatile mid-web carton printing and converting machine with a range of finishing options. It comes in two web widths (760mm and 850mm) and supports various inks. The fully servo-controlled flexographic print modules offer a maximum print format of 914.4mm.
This machine delivers web speeds of up to 300m/min and features Edale’s AiiR camera-based autonomous registration control. It’s fully modular and can be configured with different unwinds/rewinds or integrated with a third-party splicer. Post-print options include rotary die-cutting stations or a variable length sheet cutter, with additional choices for stripping, de-nesting, and stacking to meet specific requirements.
Key Features
Unwind
1800mm | 70” Jumbo unwind
Automatic butt splicers
Corona treatment and web cleaning
- Fully servo direct drive print and anilox sleeves
- Enclosed chamber ink delivery
- ‘Web-up’ design facilitates extensive drying capabilities
- Water, solvent and UV inks
- Reversible forward and reverse print stations and turnbars
- Camera based autonomous registration
- Gravure coating
Lamination & Foiling
- UV lamination and cold foil
- Water and solvent based dry bond lamination
- Thermal lamination
Post Press
- Heavy duty rotary die cutting cassettes
- Pin stripping
- Variable length sheet cutting
Delivery
- High pile stacking
- Automated batch stacking
The Edale FDC-600 flatbed die-cutting machine combines sheetfed flatbed die-cutting with a servo-driven web transport system. It’s ideal for efficient folding carton production when integrated with flexo or digital systems. With a max speed of 13,000 impressions per hour, it reduces downtime and substrate wastage.
The FDC-600 handles various carton sizes without special tooling, and it can be retrofitted to existing presses or used offline for pre-printed webs. This versatile machine cuts, creases, embosses, and more, with easy product collection and optional delivery solutions.
Key Features
- Improved efficiency
- Single-pass
- Quick die changeover
- Industry accepted die-cut quality
- Proven web fed technology
- Adapts to a wide range of carton sizes
- Use with an Edale FL press or ability to interface with existing presses
- Inline or standalone capability
FL5 Carton Press Demo Trailer
Edale FL7 Carton Printing and Converting Machine
